CSD in industrial applications
Some example of tasks solved in Energy Conversion Department.
The stresses concentration coeffictients for the rotors and valves of HP and MP parts of the 13K215 steam turbine
The computations have been done on the basis of temperature measurements obtained during start-up process of real steam turbine set. The results have allowed to obtain coefficients of stresses concentration. These coefficients could be useful to real start-up monitoring.
|
HP valve (thermal streses) |
|
|
|
|
|

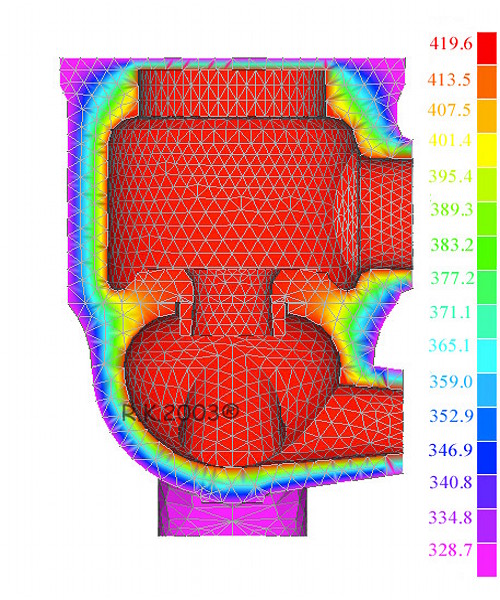

Rys. 1. Temperature [°C] |

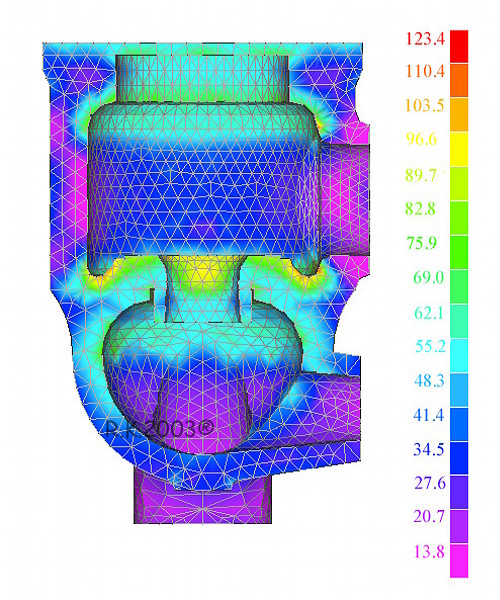

Rys. 2. Huber-Misses stresses [MPa] |
|
MP valve (thermal stresses) |
|
|
|
|
|

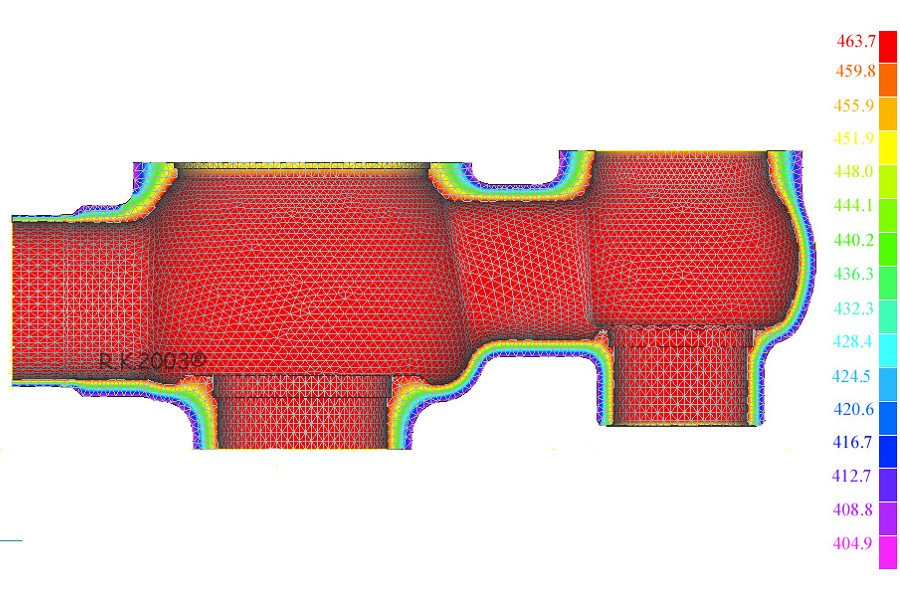

Rys. 3. Temperature [°C] |

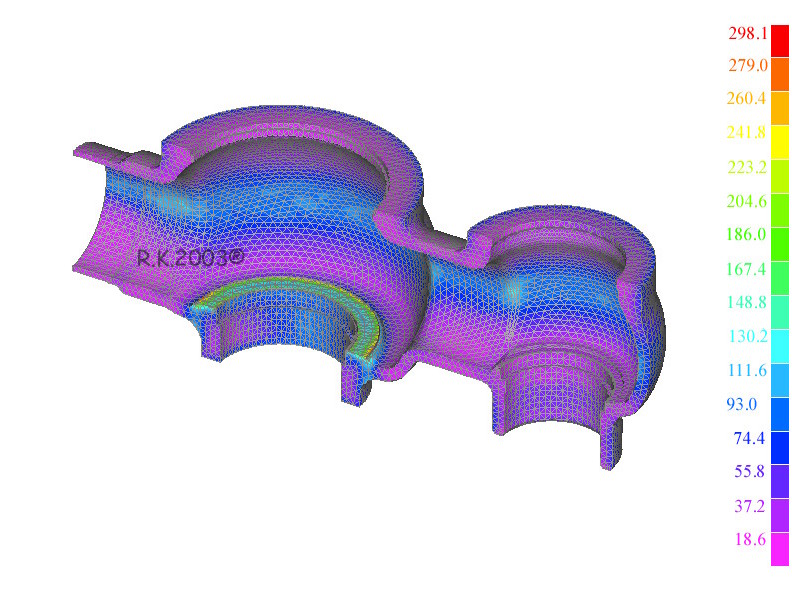

Rys. 4. Huber-Misses stresses [MPa] |
|
HP rotor (thermal stresses) |
|
|
|
|
|

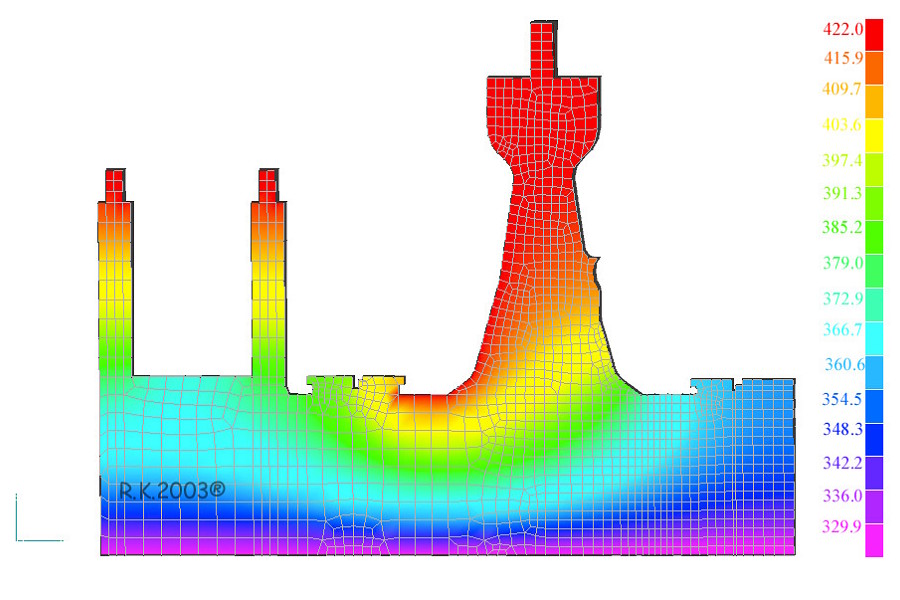

Rys. 5. Temperature [°C] |

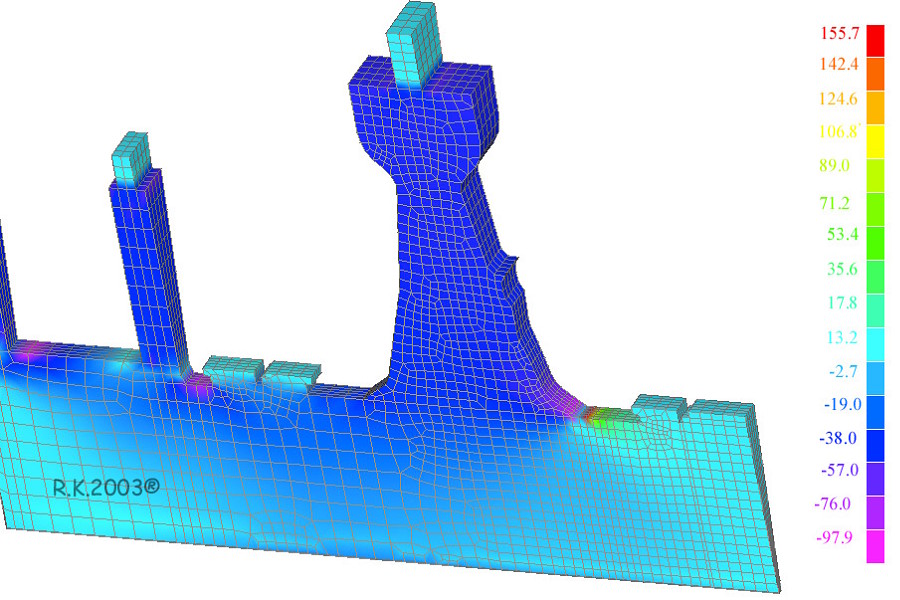

Rys. 6. Axial stresses [MPa] |
|
MP rotor (thermal stresses) |
|
|
|
|
|

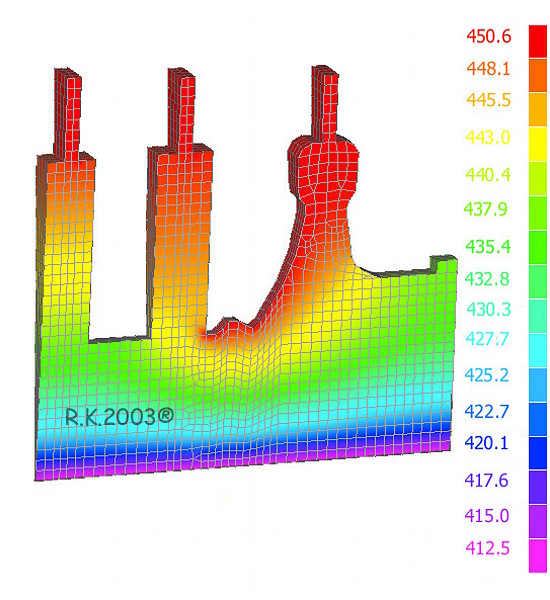

Rys. 7. Temperature [°C] |

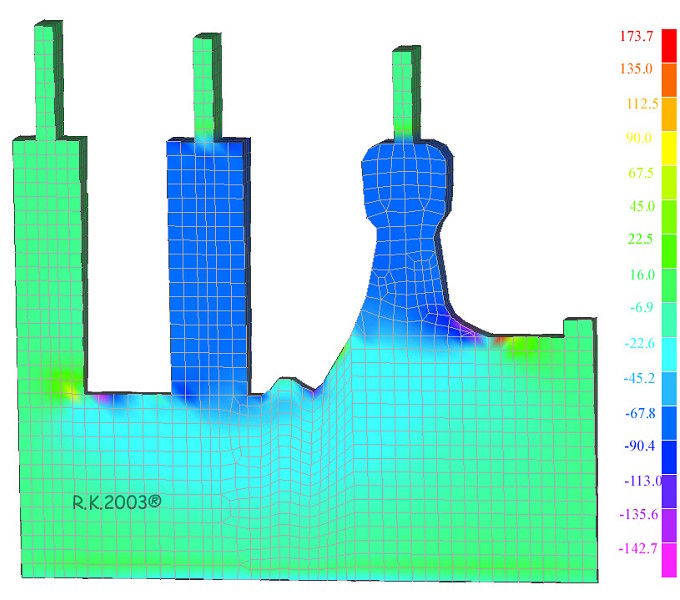

Rys. 8. Axial stresses [MPa] |
