Computations of hybrid SOFC+GT+ST+Chiller cycles
In house codes:
- COM-GAS code for a zero-dimensional modelling of the hybrid cycles
- DIA-KAR code for diagnostic of heat power plants
Examples*:

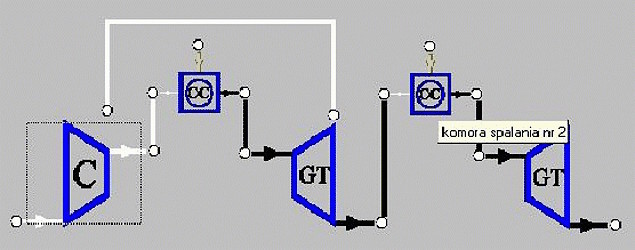

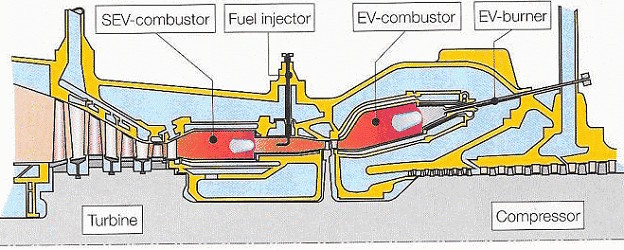

Turbine GT26 modelled in COM-GAS (right picture)

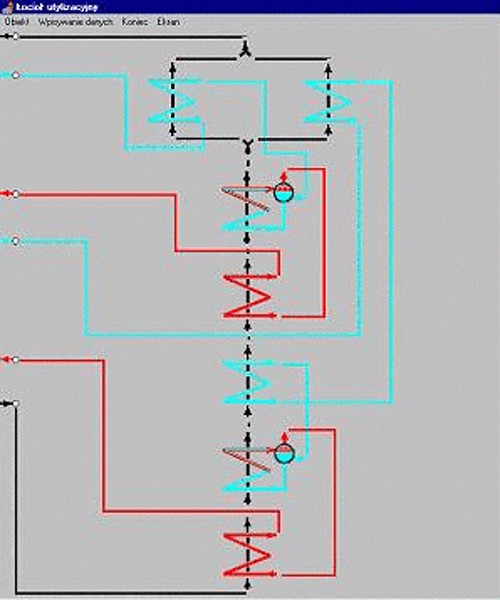

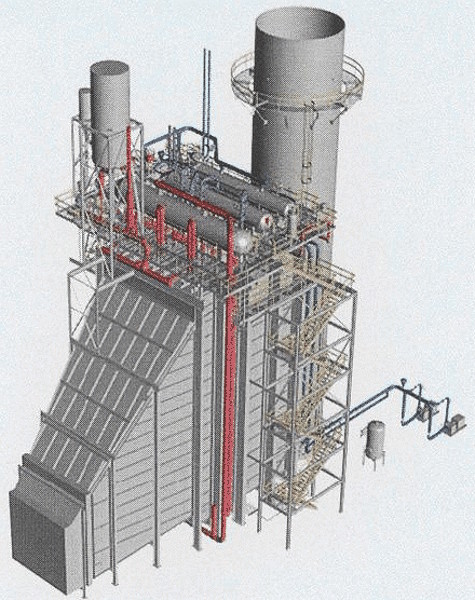

Heat Recovery Steam Generator modelled in COM-GAS (right picture)

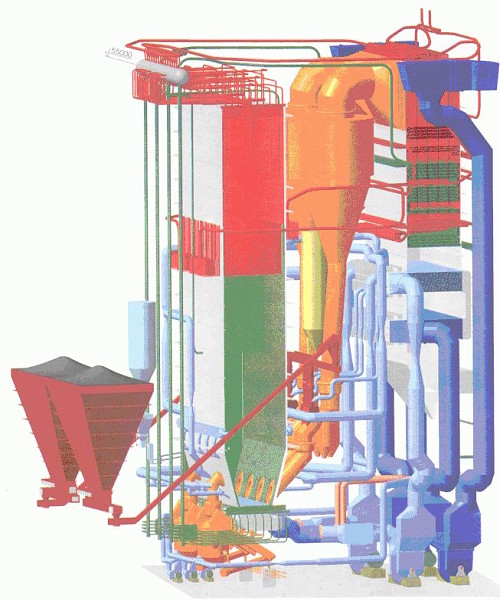

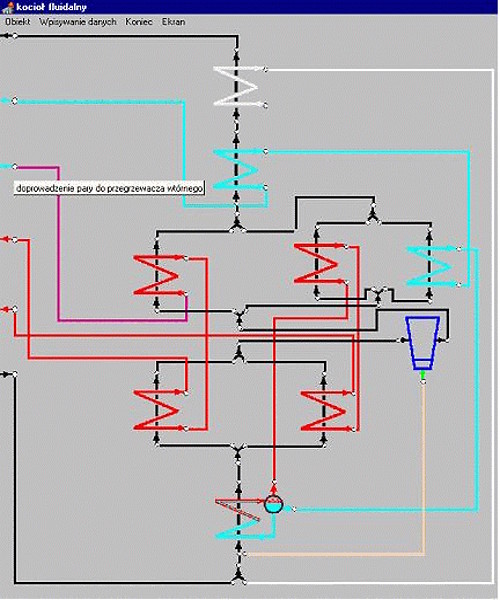

Fluidizing Bed Boiler modelled in COM-GAS (right picture)

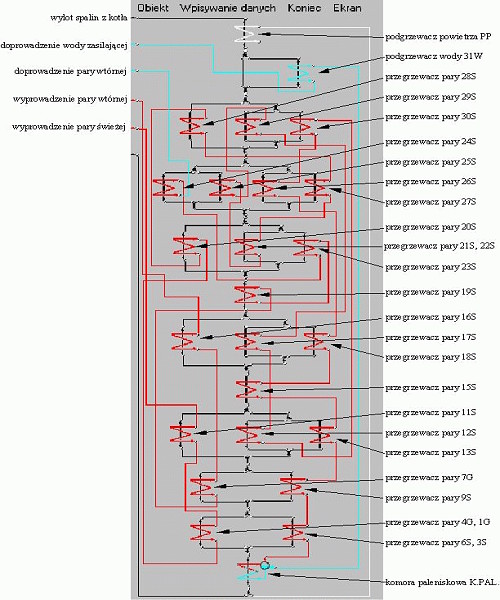

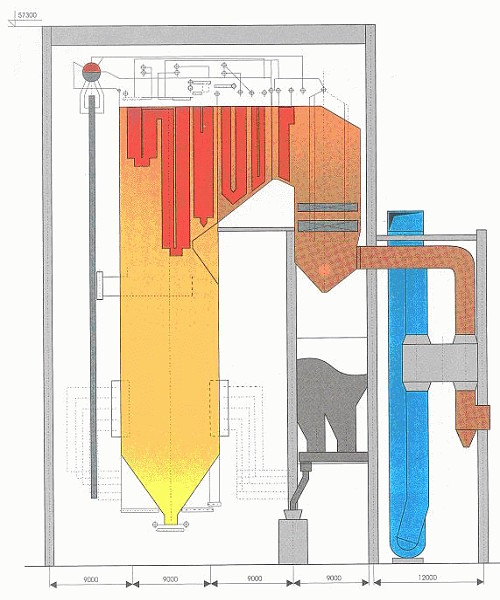

Steam Generator OP650 modelled in COM-GAS (right picture)

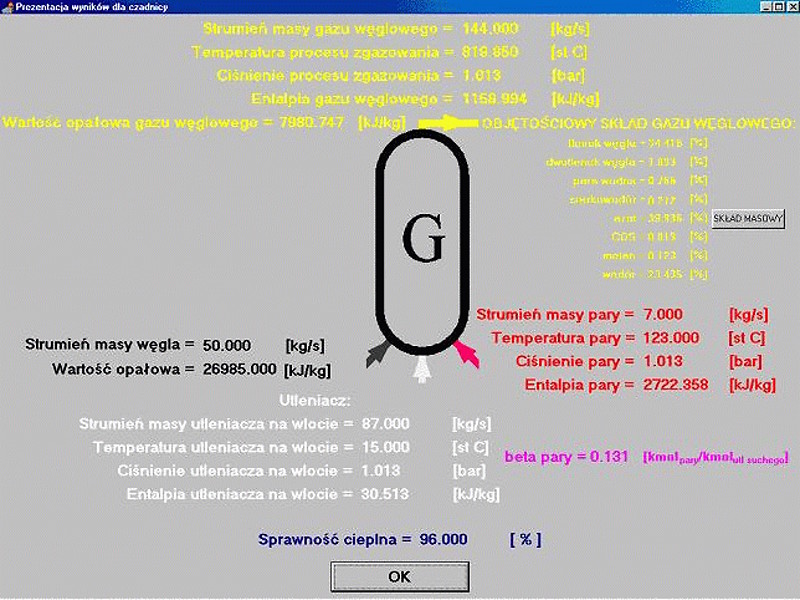

Gasificator modelled in COM-GAS

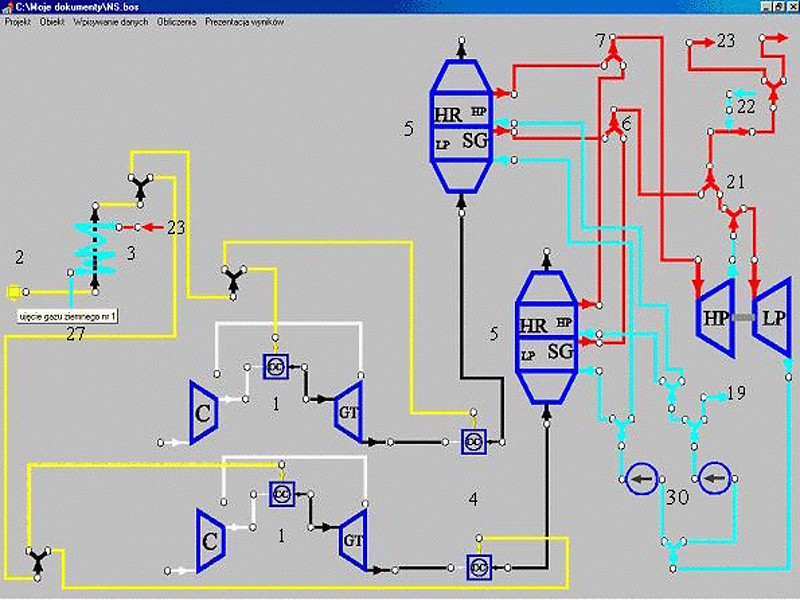

Nowa Sarzyna Power Plant modelled in COM-GAS
*) Schemes of Heat Recovery Steam Generator, fluidized bed boiler and OP650 steam generator are from RAFAKO folder and section of the gas turbine GT26 is from ALSTOM Power (former ABB) folder.
